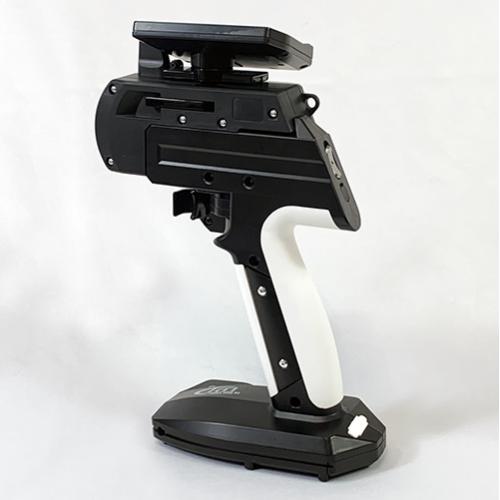

EX-NEXT BASIC Limited Edition

A special edition model featuring aluminum screws (Silver) and color grips (White).
This is a limited-time made-to-order product, available only on this occasion.



※No changes have been made to the original performance of the unit.



Compatible with Multiple Receivers

Depending on your machine and application, you can select from the receivers listed below. Please note: A receiver is not included in this set. Please prepare separately from the items below.

KR-420XT (Standard Antenna / Short Antenna)

This receiver supports all the features of EX-NEXT. Among them, only the KR-420XT is compatible with the ultra-fast response “XT Advance Mode”, making it highly recommended for racing and categories that demand precise control. It also supports "XT Telemetry Mode".

KR-242XT (Standard Antenna / Short Antenna)

A telemetry-dedicated receiver. Although it comes in the same ultra-compact case size as the KR-420XT, it is more affordable and user-friendly. A convenient receiver that allows you to adjust servo settings via telemetry.

“MINI-Z EVO 2 Receiver Unit for KO Transmitters”, “MINI-Z EVO Receiver Unit EX-NEXT MC-8”

Receivers compatible with Kyosho’s MINI-Z EVO/EVO2. They maximize the evolving potential of MINI-Z, ensuring the best performance for your machine. Please use the receiver that matches your model.



Basic Model with a Simple Configuration

This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.



Equipped with Lay Down Trigger (LDT)!​

A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands  * There are limit by Hand size.

For more information on "LDT", please visit here.

Charge battery by connecting to stand

Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm











Equipped with a new standard "XT" that achieves the fastest communication speed in the industry​.

EX-NEXT features the newly implemented “XT” system, an evolution beyond the conventional “FHSS.” You can choose between “XT Advanced Mode” for ultra-high-speed response and “XT Telemetry Mode” for bi-directional communication (telemetry) support.





XT Advanced Mode

EX-NEXT has been newly developed with a complete redesign of both its control and communication systems from the ground up. It achieves industry-leading communication speed and ultra-high-resolution precision. In its fastest response mode, "XT Advanced Mode," EX-NEXT delivers approximately three times the communication speed compared to the EX-RR. This performance surpasses even the previously fastest HCS mode.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

*When using the ultra-high-speed XT Advanced Mode, please combine it with either serial-compatible servo “4S” or HCS-compliant "RSx3/BSx3" series servos. Due to the extremely fast communication cycle of the XT Advanced Mode, general servos might experience limitations in their operating angles.



XT Telemetry mode

EX-NEXT is equipped with telemetry (bi-directional communication) functionality. By connecting a serial-compatible “4S” servo to the B/S port of the KR-420/242XT, “REAL TIME ICS” becomes available. This allows you to adjust servo parameters directly from the transmitter without needing to retrieve the machine. Now you can achieve more refined and uncompromising setups with greater freedom than ever before.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.



High speed supported by Serial servo.​

Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time ofthe servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating thecar directly.

<Compatible servos> RSx4S / BSx4S Series



*Servo is sold separately.



Supported HCS.

EX-NEXT support the use of HCS that was adopted from the RSx3, BSx3 series. Until now, it was necessary to change the receiver mode using the settingdevice, but with EX-NEXT this can be changed from the transmitter for each channel. HCS compatible servos are automatically change to HCS mode when the received signal is HCS. If you want use HCS, please connect servos to 1-4ch of the receiver.

　<Compatible Servo>　RSx3 / BSx3 / RSx4S / BSx4S Series



NORMAL mode (For commercially available servos and ESCs)

You can use different kinds of servos by changing the response mode to "Normal mode". So, you can use most current servos and ESC with EX-NEXT.

In this case, please connect to 1-4ch of the receiver.
*If you change the response mode of EX-NEXT from NORMAL to XT advanced mode in the radio settings, the maximum movement degrees of servos are limit to maximum about 42 degrees and will change. So, if you use NORMAL mode were commended setting to XT telemetry mode in the radio setting. In case of using an ESC, there is no chance of using over a travel limit, so there is no problem using with XT advanced mode.



Intuitive alert function with vibration and full-color LED

Equipped with a vibration motor that has been requested. This can be used for alarms that notify the running time and alerts for various sensors. In addition, the LED on the front of the master unit is a full-color LED. The radio wave mode in use and the alert content of the vibration motor can now be identified by the LED lighting pattern.



Xpansion 2 that can change the ICS setting of the servo is standard equipment.​

EX-NEXT is equipped with the evolved "LCD Xpansion unit 2 EXP-201" as standard equipment. New telemetry, XT radio mode, supported menu, and also the newly added setting function for ICS compatible servo are standard. Serial compatible servos which support "REAL TIME ICS" and conventional ICS compatible servos can be used. Change settings of an ICS servo by only using the Xpansion unit 2 without using a PC or servo model selector.

*It necessary to use external power (6 to 7.4V) for setting by Xpansion unit 2 only. Please use the "Servo Twin Extension Wire II w/new plug" for power supply, sold separately.





New Drop down extension Unit 2.1

Tune up for EX-NEXT

Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.

Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!

The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.





The soft spring which can be operated with a constant tension.

The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.



Firmware update function.​

Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product.  It cannot be used with EX-RR/LDT/2/6/6R.



Convenient Backup Manager for Saving Memory Data

We have released backup manager software that allows you to save the memory data from your EX-NEXT to a PC. It’s useful for storing important data or as temporary storage when your memory becomes full. For more details, please refer to the link below:

Backup Manager Software for EX-NEXT

Note: A Windows PC and an ICS USB Adapter HS are required for updates.
Note: This software is exclusively for EX-NEXT and is not compatible with EX-RR, LDT, EX-2, EX-6, or EX-6R.



EX-NEXT function list

<Telemetry>
RF mode/Response/REAL TIME ICS/Battery fail safe

<MODEL>
Model select /Model name/ Model copy /Model reset /50 model

<System>
Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed  /Display language / Operation timer /User timer / All reset

<Steering>
Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

<Throttle>Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
 /Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog

<Timer>
Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Aram mode / Timer mode (Lap timer/ Down timer)

Contents:

Master Unit EX-NEXT (BASIC) x1
LCD Xpansion Unit2 EXP-201 ×1
Drop down  extension Unit 2.1 (BASIC) ×1
Expert grip unit LDT (BASIC) x1

Receiver: *Receiver not included. Please prepare separately.

Other: Throttle Lever(wide)/Trigger Pad/Brake spacer/Balance terminal extension cable

*Battery, Dry batteries are sold separately
